Nano Air Dryers
Heat Reactivated Twin Tower Desiccant
Desiccant dryers remove moisture from compressed air, ensuring it remains dry and free from contaminants. Among desiccant dryer technologies, nano desiccant dryers are the most advanced and efficient solution.
150cfm - 3000cfm

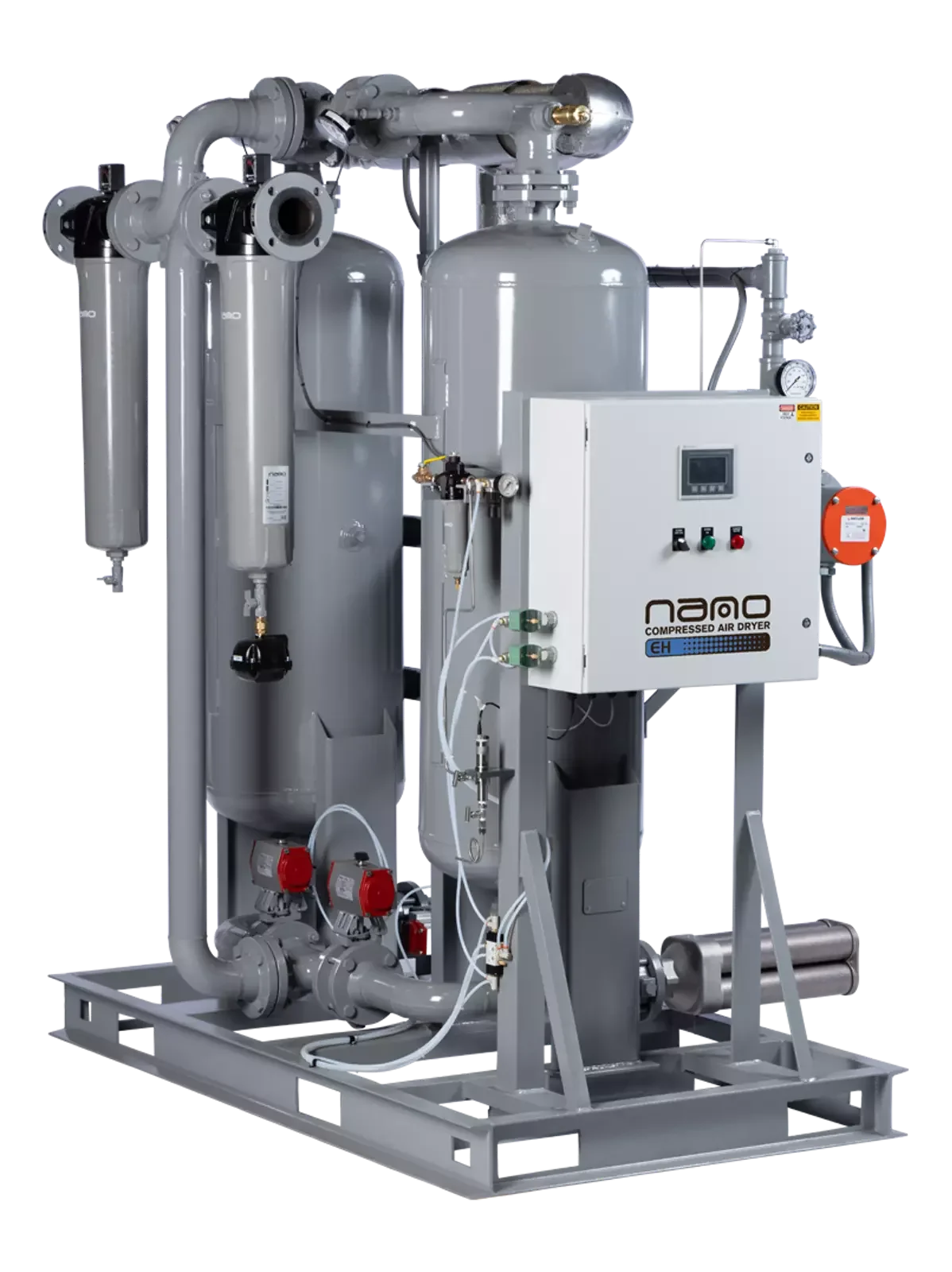

Nano EH Series Heat Reactivated Desiccant Dryers
The nano EH Series Externally-Heated Twin Tower Desiccant Compressed Air Dryers offer the ultimate solution for eliminating water vapor from compressed air systems.
Description
Features
PLC Controlled Operation
• The dryer is operated by a robust and reliable PLC control system offering valuable features including 'power on', 'hours run' and 'service required indicators'.
• Memory retention built into the PLC enables the controller to pick up where it left off in the drying cycle, ensuring consistently clean and dry air downstream.
• Compressor synchronization is a standard energy saving feature on HL range which starts and stops the dryer with a signal from the compressor to eliminate purge loss when drying is not required.
• NEMA 4 control panel
• Models HL 1000 and up and complete EH range include our premium controller as standard.
Low Noise Exhaust Mufflers
• Specifically designed to minimize the noise of depressurization and purge exhaust.
• High flow design improves regeneration.
Low Watt Density Heater (EH & ABP ranges)
• Regeneration circuit is fully insulated for maximum efficiency.
• Specifically designed for a long and dependable operating life in harsh industrial environments.
Secondary Heater Contactor (EH & ABP Ranges)
• Provides protection against overheating in the event of a primary contactor failure.
Regenerative Blower (ABP Range)
• Utilizes atmospheric air for regeneration.
• Easy maintenance and a rugged construction with TEFC premium motor that includes filtered air intake.
• Vortex regenerative blower (models 2500 scfm and below); centrifugal blower (models 3000 scfm and larger)
